Drill Winch
Part Codes
- DW2 – Drill Winch (Basic), for use with 8 mm – 11 mm rope
- DW3 – Drill Winch (Pro), for use with 10.5 mm & 11 mm rope
Key Features
The DW2 and DW3 Drill Winch by At Height Ltd are compact machines designed for the lifting and lowering of personnel and materials. They are suitable for a wide range of applications, including working at height, rescue operations, rigging, and materials handling.
Both the DW2 and DW3 are certified by a Notified Body in accordance with the Machinery Directive 2006/42/EC, Annex IV (Part 17) and comply with the Essential Health and Safety Requirements of Annex I.
-

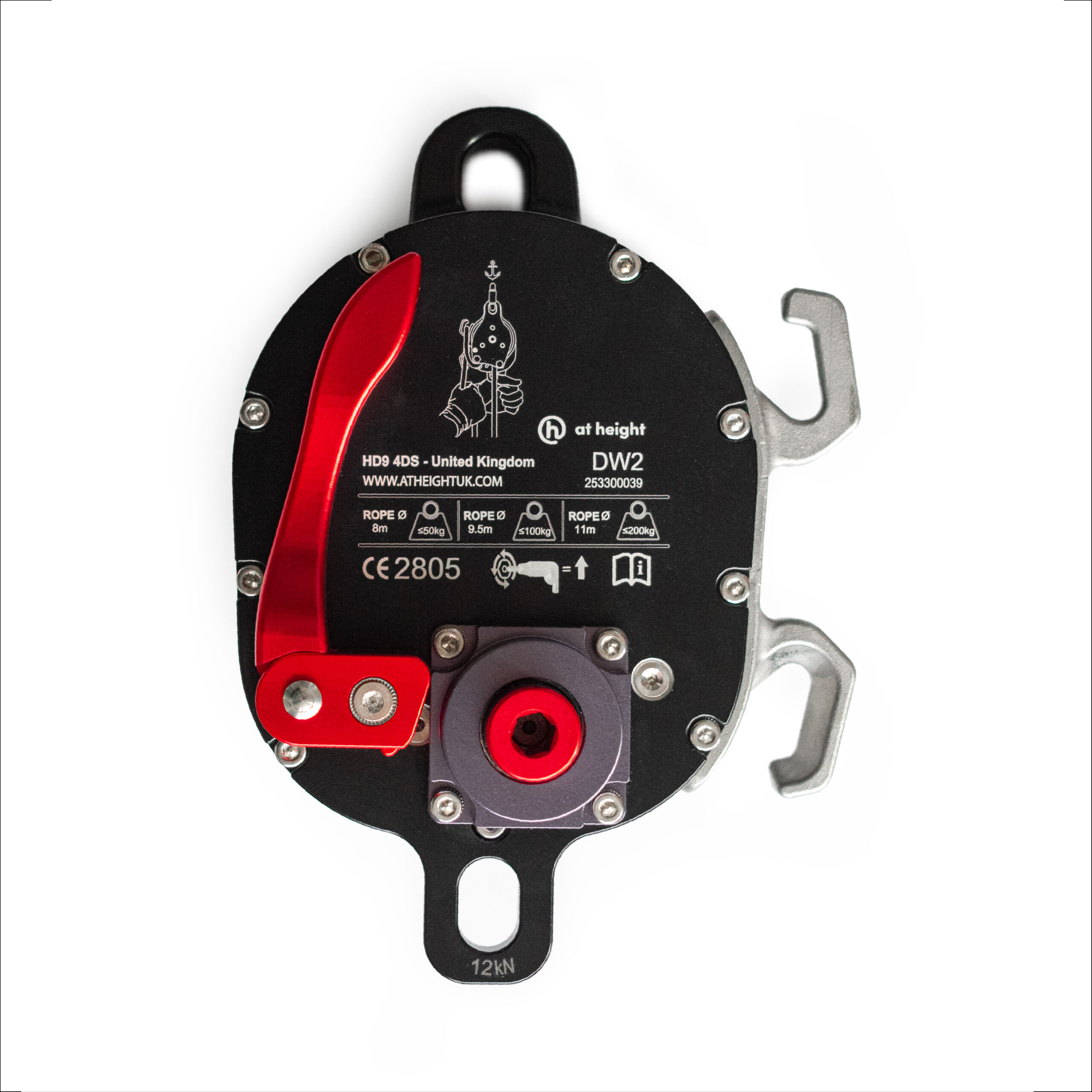

DW2 – Weight: 2 kg
Maximum Rated Load: 200 kg with 11 mm rope
(Refer to technical data for rated loads with other rope diameters) -

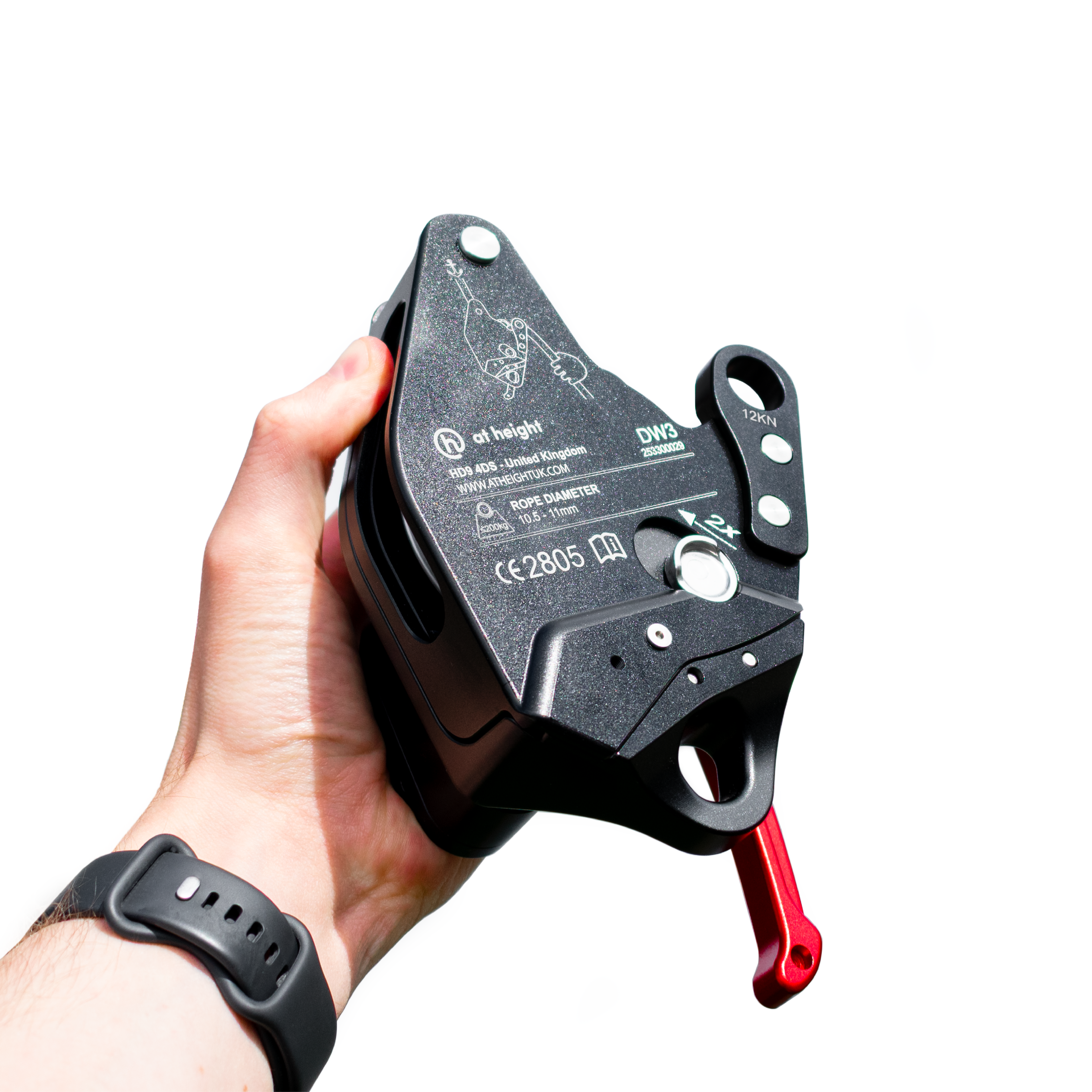

DW3 – Weight: 1.5 kg

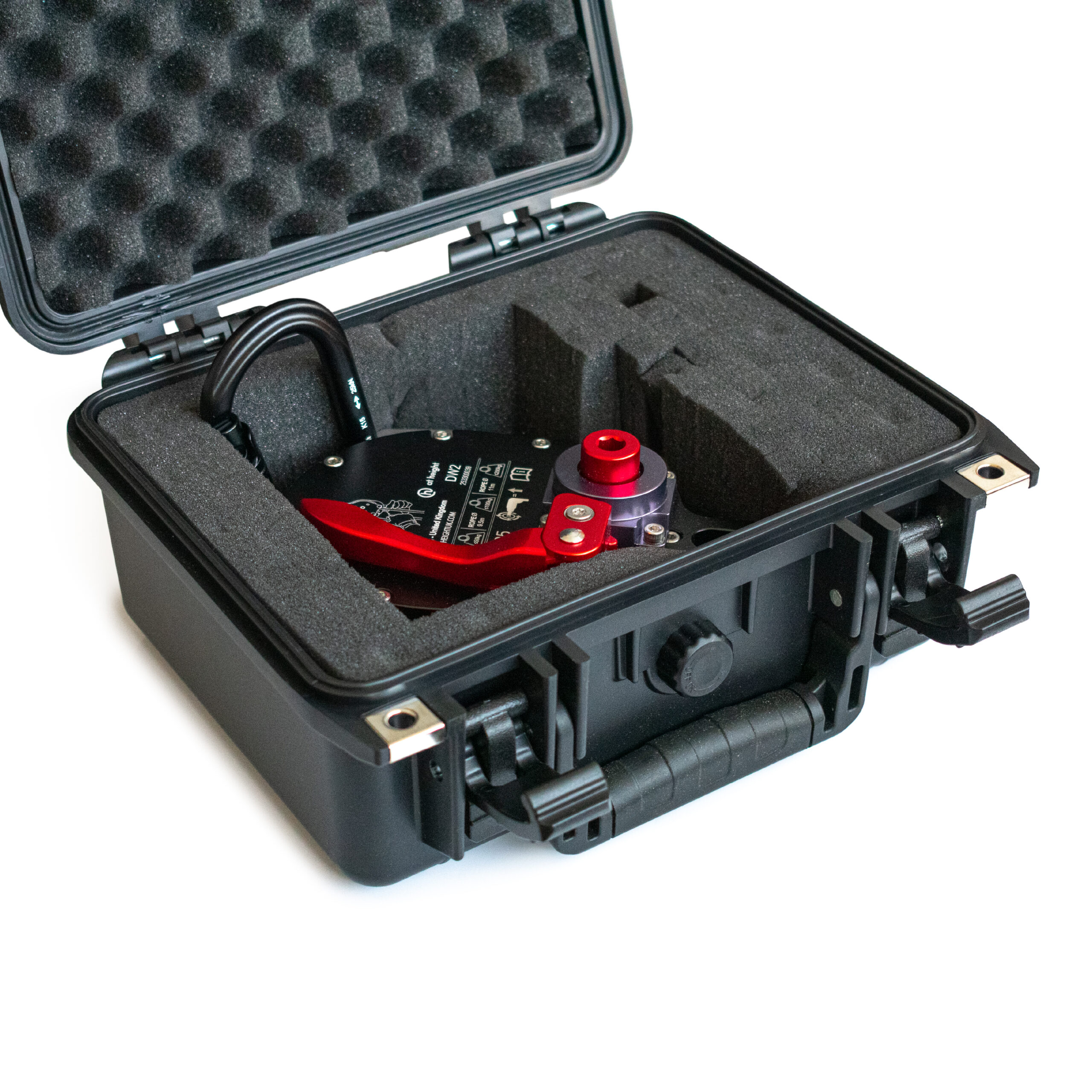

Maximum Rated Load: 200 kg with 10.5 mm / 11 mm rope - All devices are supplied in a hard plastic protective case and include spare hex keys.
- Each unit is individually serial-numbered to enhance traceability.
- For optimum efficiency, use with a brushless drill featuring a torque rating greater than 100 Nm and a battery capacity exceeding 5.0 Ah.
